Characteristics:
Capacity range: 1.2Ah to 3000Ah
Available in: 2V cells; 4V, 6V and 12V blocks
EUROBAT design life:
2V > 200Ah: > 12 years, Very Long Life
4V/6V/12V ≤ 28Ah: 3 - 5 years, Standard Commercial
6V/12V > 28Ah: 10/12 years, Long Life
Self-discharge per month: ≤ 3% at 25°C
Operation temperature range: - 20°C to + 50°C
Recommended operation temperature: 25°C
Applications:
Emergency light systems
Firefighting equipment
Alarm systems
UPS
Electric toys
Medical equipment
Telecommunications
IT equipment
NP SERIES S TYPE
|
| Battery Model |
Nominal Voltage(V) |
Rated Capacity(Ah) 20HR/25℃ |
Approx.Weight(Kg) |
Dimensions(mm) |
Terminal Type |
Terminal Position |
Specification |
| Length |
Width |
Height |
Total Height |
| NP12-1.2Ah |
12 |
1.2 |
0.54 |
98 |
43 |
52 |
58 |
T1 |
E |
NP12-1.2Ah |
| NP12-1.9Ah |
12 |
1.9 |
0.78 |
178 |
34 |
60 |
66 |
T1 |
C |
NP12-1.9Ah |
| NP12-2.3Ah |
12 |
2.3 |
0.90 |
NP12-2.3Ah |
| NP12-2Ah |
12 |
2 |
0.74 |
70 |
47 |
98 |
103 |
T1 |
C |
NP12-2Ah |
| NP12-2.9Ah |
12 |
2.9 |
1.05 |
79 |
56 |
99 |
104 |
T1 |
D |
NP12-2.9Ah |
| NP12-3.2Ah |
12 |
3.2 |
1.20 |
134 |
67 |
61 |
67 |
T1 |
E |
NP12-3.2Ah |
| NP12-4Ah |
12 |
4 |
1.35 |
90 |
70 |
101 |
107 |
T1/T2 |
C |
NP12-4Ah |

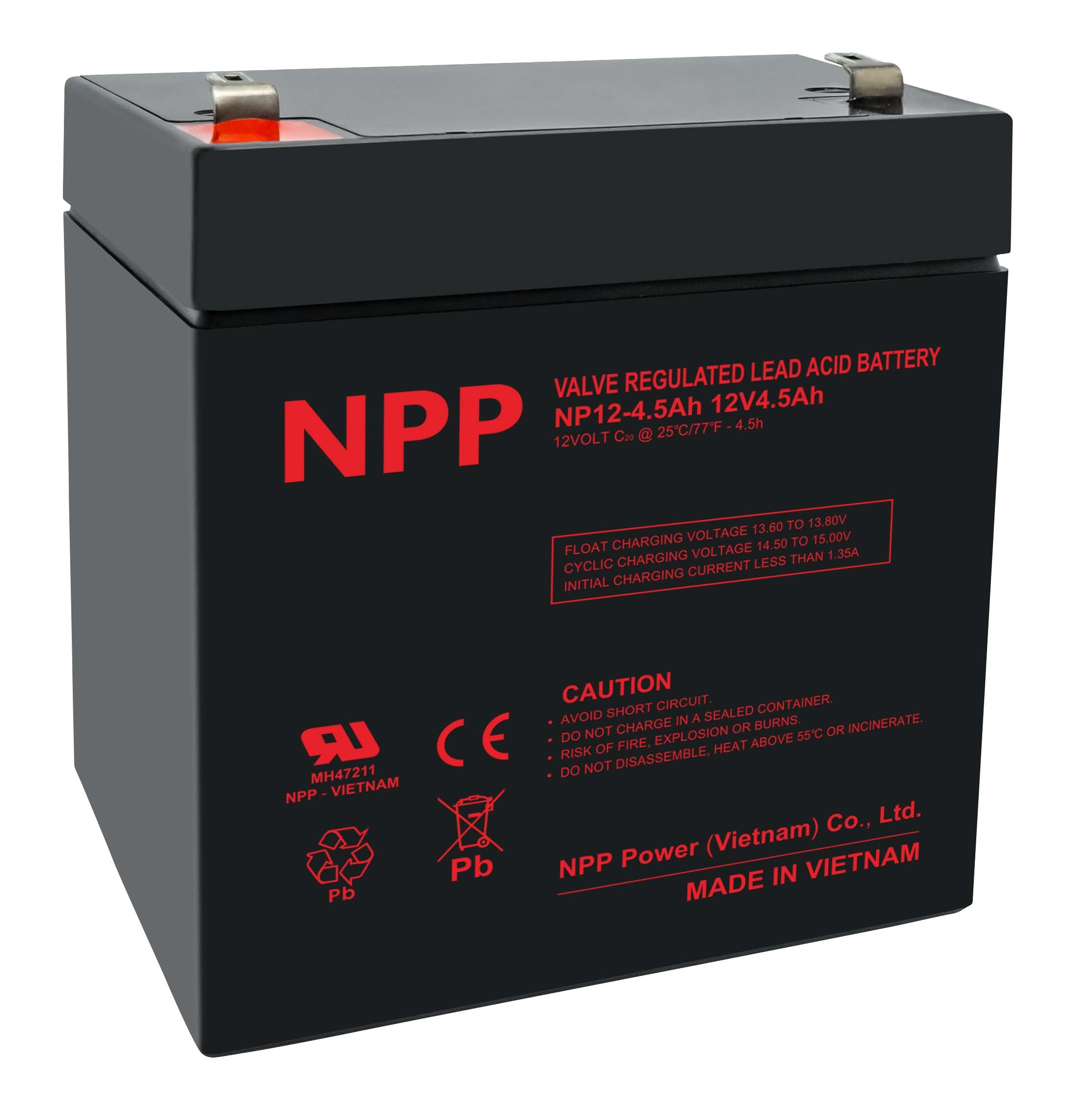

| NP12-4.5Ah |
12 |
4.5 |
1.50 |
NP12-4.5Ah |
| NP12-5Ah |
12 |
5 |
1.65 |
NP12-5Ah |
| NP12-7Ah |
12 |
7 |
2.10 |
151 |
65 |
94 |
100 |
T1/T2 |
F |
NP12-7Ah |
| NP12-7.2Ah |
12 |
7.2 |
2.20 |
NP12-7.2Ah |
| NP12-7.5Ah |
12 |
7.5 |
2.20 |
NP12-7.5Ah |
| NP12-8Ah |
12 |
8 |
2.35 |
NP12-8Ah |
| NP12-8.5Ah |
12 |
8.5 |
2.50 |
NP12-8.5Ah |
| NP12-9Ah |
12 |
9 |
2.65 |
NP12-9Ah |
| NP12-10Ah |
12 |
10 |
3.10 |
151 |
98 |
95 |
101 |
T1/T2 |
F |
NP12-10Ah |
| NP12-12Ah |
12 |
12 |
3.40 |
NP12-12Ah |
| NP12-15Ah |
12 |
15 |
4.80 |
181 |
77 |
167 |
167 |
T3/T12 |
D |
NP12-15Ah |
| NP12-17Ah |
12 |
17 |
5.00 |
NP12-17Ah |
| NP12-18Ah |
12 |
18 |
5.20 |
NP12-18Ah |
| NP12-20Ah |
12 |
20 |
5.50 |
NP12-20Ah |
| NP12-24Ah |
12 |
24 |
7.40 |
166 |
175 |
125 |
125 |
T4/T12 |
D |
NP12-24Ah |
| NP12-26Ah |
12 |
26 |
7.90 |
NP12-26Ah |
| NP12-28Ah |
12 |
28 |
8.80 |
NP12-28Ah |
| NP12-24SAh |
12 |
24 |
7.50 |
166 |
126 |
174 |
174/181 |
T14/T5 |
D |
NP12-24SAh |
| NP12-28SAh |
12 |
28 |
8.80 |
NP12-28SAh |
| NP12-33Ah |
12 |
33 |
10.00 |
195 |
130 |
155 |
163/180 |
T14/T6 |
C |
NP12-33Ah |
| NP12-38Ah |
12 |
38 |
11.80 |
197 |
165 |
170 |
170 |
T14 |
D |
NP12-38Ah |
| NP12-40Ah |
12 |
40 |
12.50 |
NP12-40Ah |
| NP12-45Ah |
12 |
45 |
13.80 |
NP12-45Ah |
| NP12-50Ah |
12 |
50 |
16.20 |
230 |
138 |
211 |
215 |
T14 |
C |
NP12-50Ah |
| NP12-55Ah |
12 |
55 |
17.30 |
230 |
138 |
211 |
215 |
T14 |
C |
NP12-55Ah |
| NP12-60Ah |
12 |
60 |
19.30 |
350 |
166 |
179 |
179 |
T14 |
C |
NP12-60Ah |
| NP12-65Ah |
12 |
65 |
20.40 |
NP12-65Ah |
| NP12-70Ah |
12 |
70 |
22.50 |
260 |
169 |
211 |
215 |
T14 |
C |
NP12-70Ah |
| NP12-75Ah |
12 |
75 |
23.50 |
NP12-75Ah |
| NP12-80Ah |
12 |
80 |
24.20 |
NP12-80Ah |
| NP12-90Ah |
12 |
90 |
27.00 |
306 |
169 |
211 |
215 |
T14 |
C |
NP12-90Ah |
| NP12-100Ah |
12 |
100 |
29.50 |
330 |
171 |
214 |
220 |
T16 |
C |
NP12-100Ah |
| NP12-120Ah |
12 |
120 |
34.80 |
409 |
176 |
225 |
225 |
T16 |
C |
NP12-120Ah |
| NP12-150Ah |
12 |
150 |
41.80 |
485 |
172 |
240 |
240 |
T16 |
C |
NP12-150Ah |
| NP12-160Ah |
12 |
160 |
49.50 |
530 |
207 |
214 |
218 |
T16 |
E |
NP12-160Ah |
| NP12-180Ah |
12 |
180 |
53.50 |
NP12-180Ah |
| NP12-200Ah |
12 |
200 |
59.50 |
522 |
238 |
218 |
222 |
T18 |
E |
NP12-200Ah |
| NP12-250Ah |
12 |
250 |
71.50 |
521 |
269 |
220 |
224 |
T18 |
E |
NP12-250Ah |
